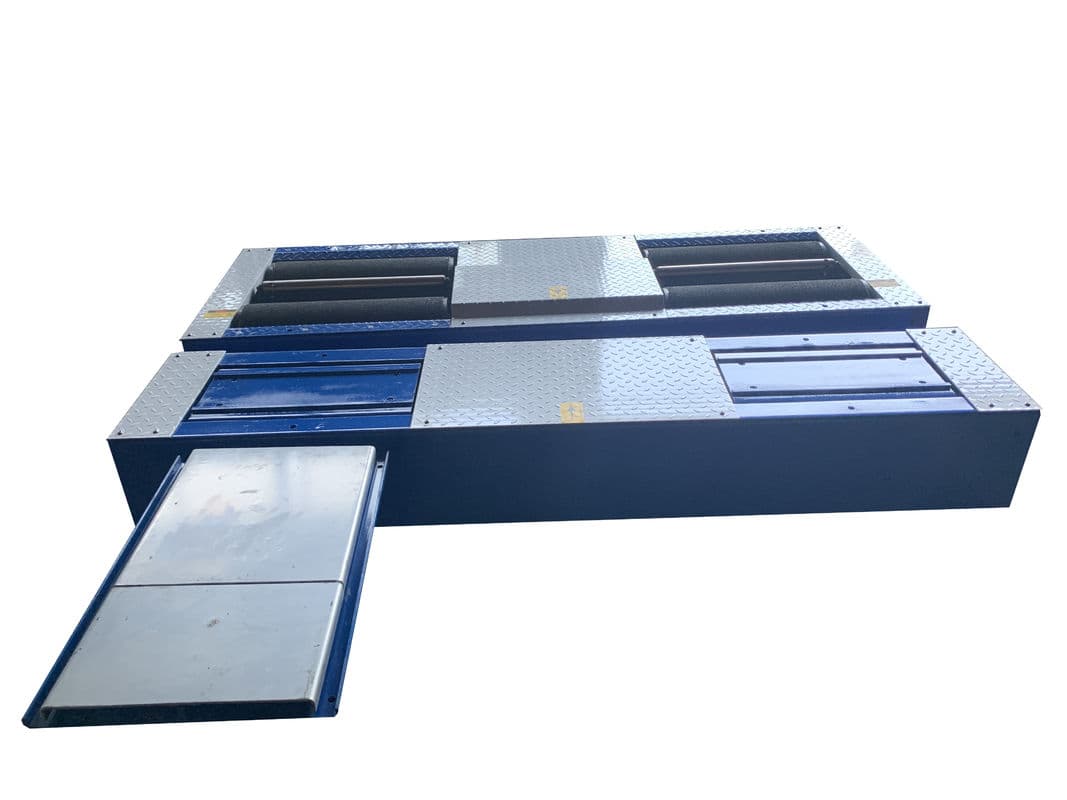

4‑in‑1 Vehicle Test Line4‑in‑1 lane — brake, suspension, sideslip, play detector
Integrated system combining brake testing, axle load measurement, sideslip detection, and suspension testing.
- Max axle load4t
- Brake force9kN
- Track800–2200mm
- Accuracy±3%
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTGT-3-4U is a fully integrated 4‑in‑1 vehicle inspection test line, combining brake testing, axle load measurement, sideslip detection and suspension testing in a single drive-through station. Patented sanding-roller technology ensures a friction coefficient above 0.85 and a service life exceeding 200,000 test cycles. The line is configured to support NCT, MOT (DVSA ATL) and CVRT approval preparation, with automated reporting formats and an operator interface designed for ease of use — subject to local authority approval and final commissioning.
Full datasheet
- Accuracy
- ±3 %

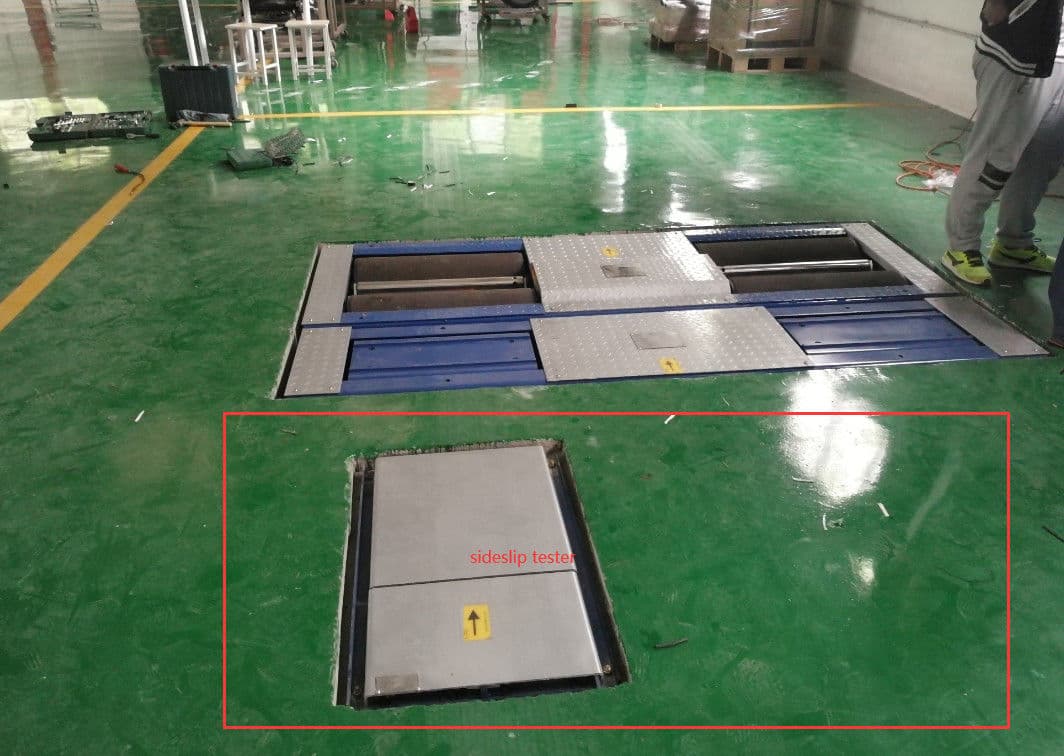

- Sideslip
- ±10 m/km
- BrakeForce
- up to 9000 N
- MotorPower
- 3 kW × 2 + 2.2 kW × 2
- WheelTrack
- 800–2200 mm
- MaxAxleLoad
- 4000 kg
- PowerSupply
- AC 380 V ±10 % 50 Hz
- RollerDiameter
- Ø 245 × 700 mm
- SuspensionTestRange
- 0–1500 kg
- RollerCenterDistance
- 430 mm
ECTGT-3-4U · Features

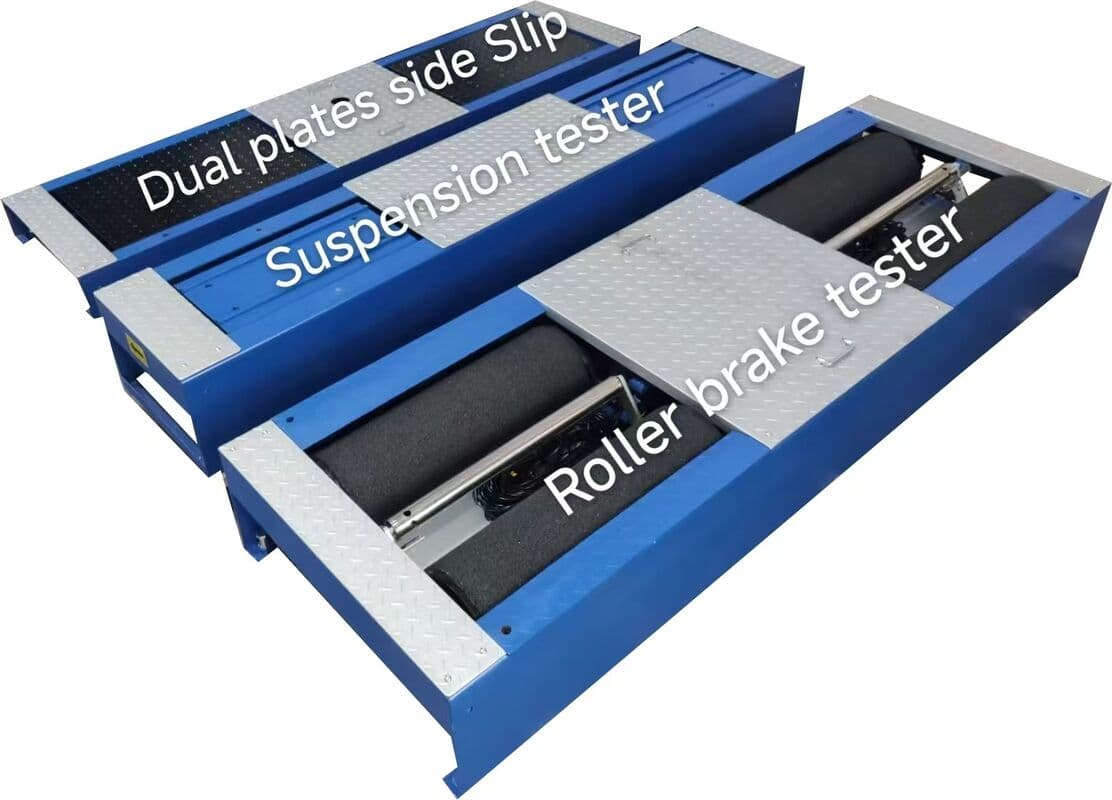

- Integrated brake testing, axle load, sideslip and suspension in one station
- Patented sanding rollers — friction coefficient > 0.85, ~200,000-cycle service life
- High-efficiency self-locking variable-speed motor
- Real-time brake force and suspension damping curves
- Automated reporting formats suitable for inspection authorities
- Configured for NCT, MOT (DVSA ATL) and CVRT approval preparation
