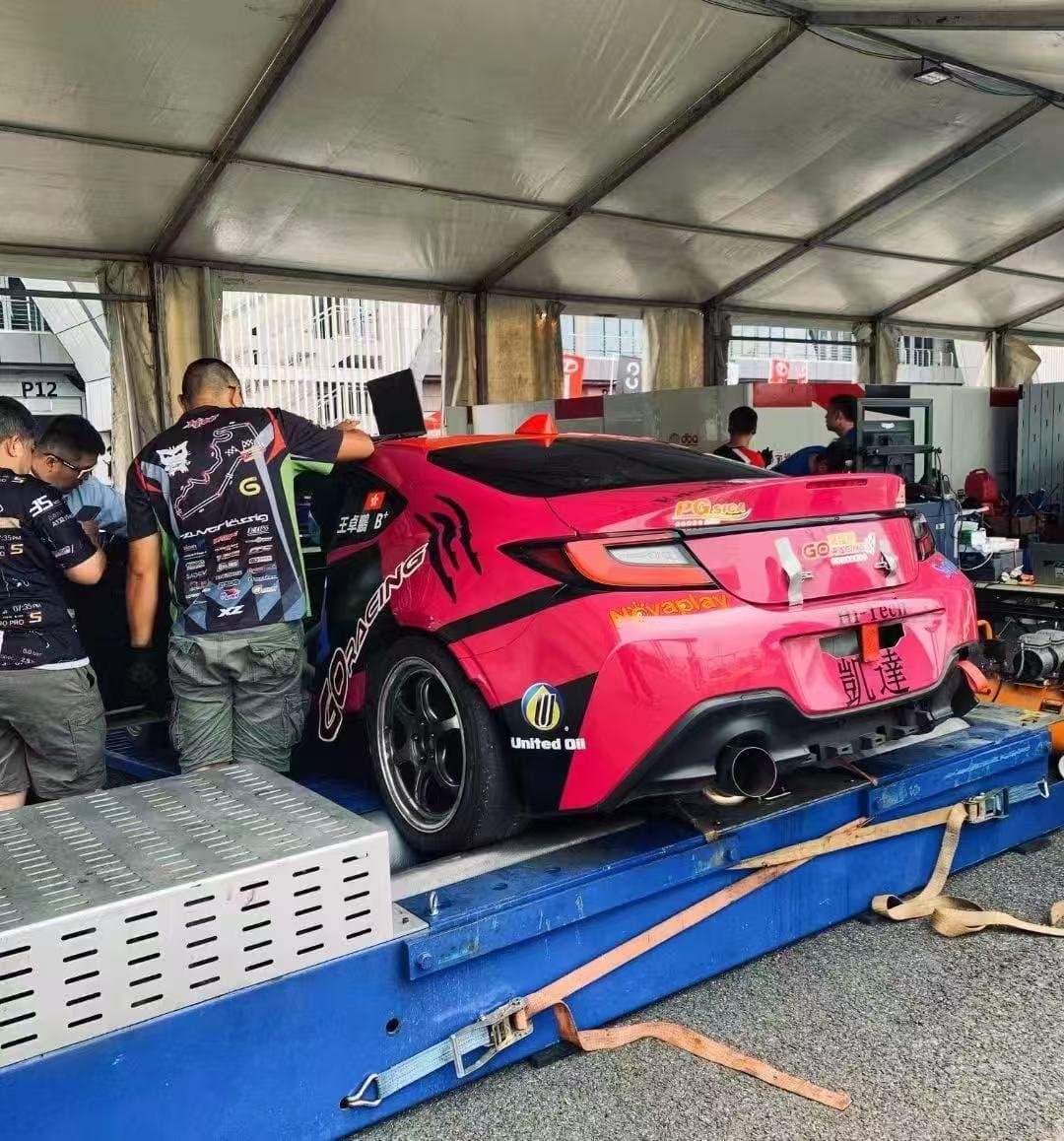

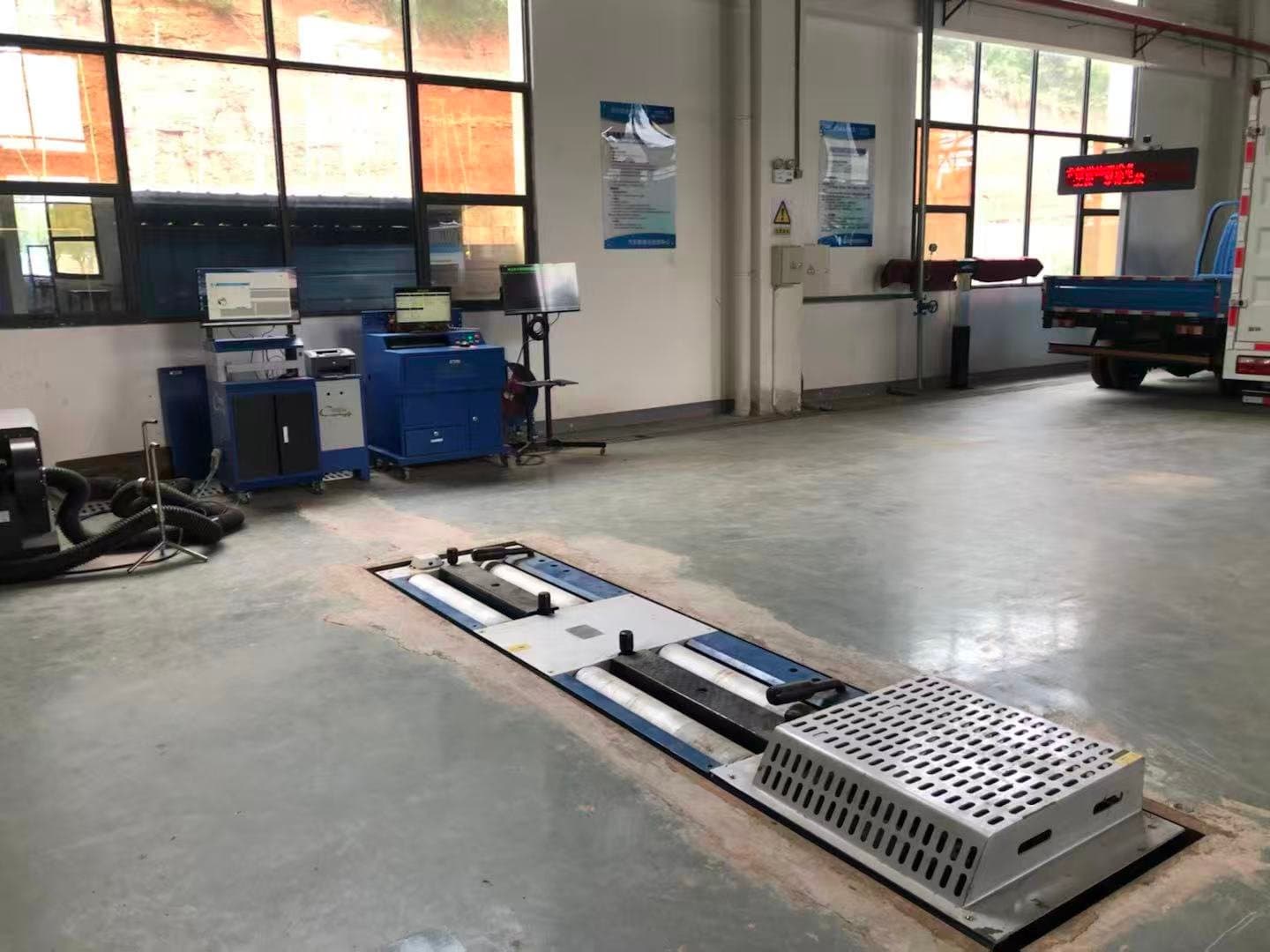

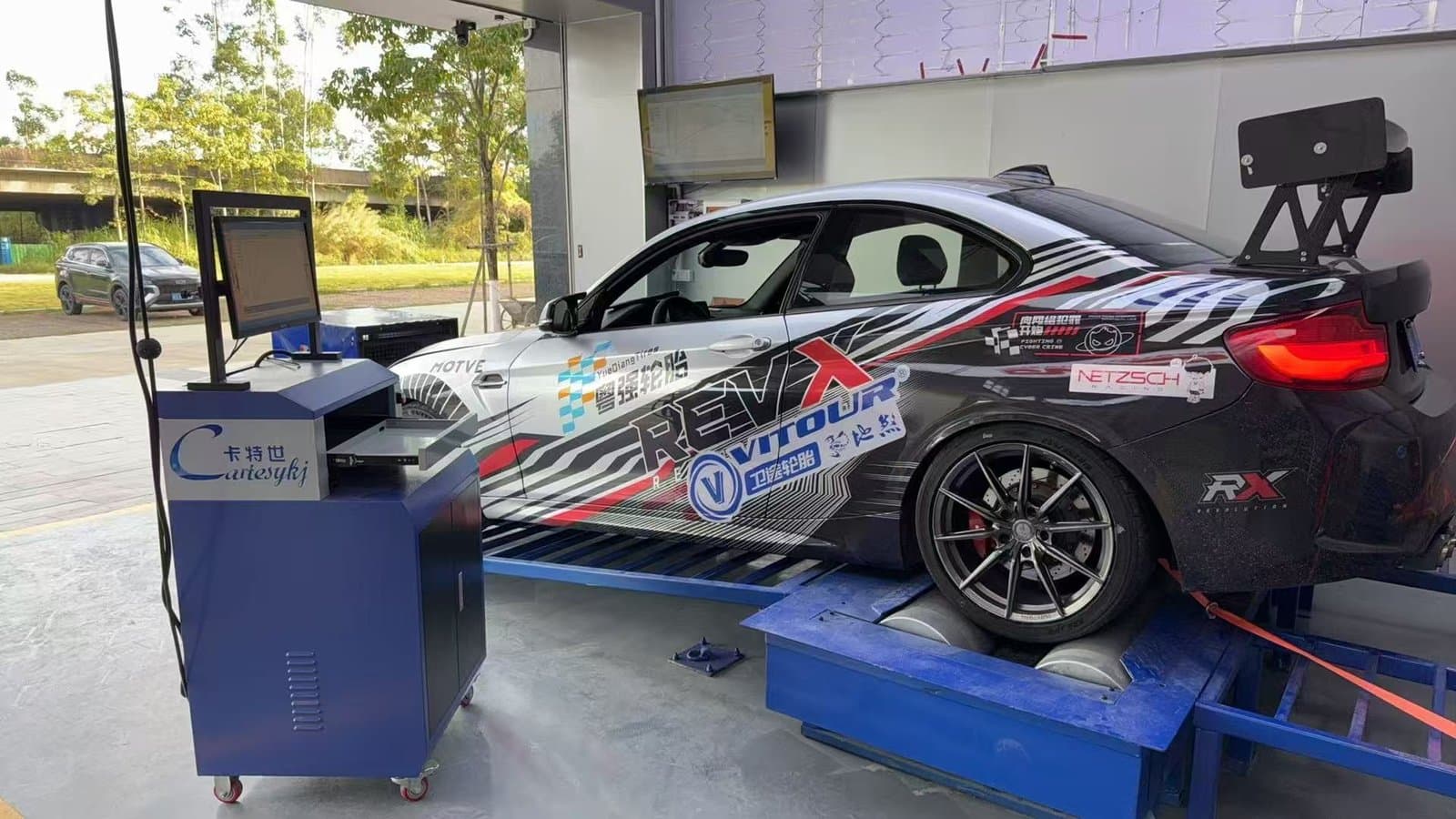

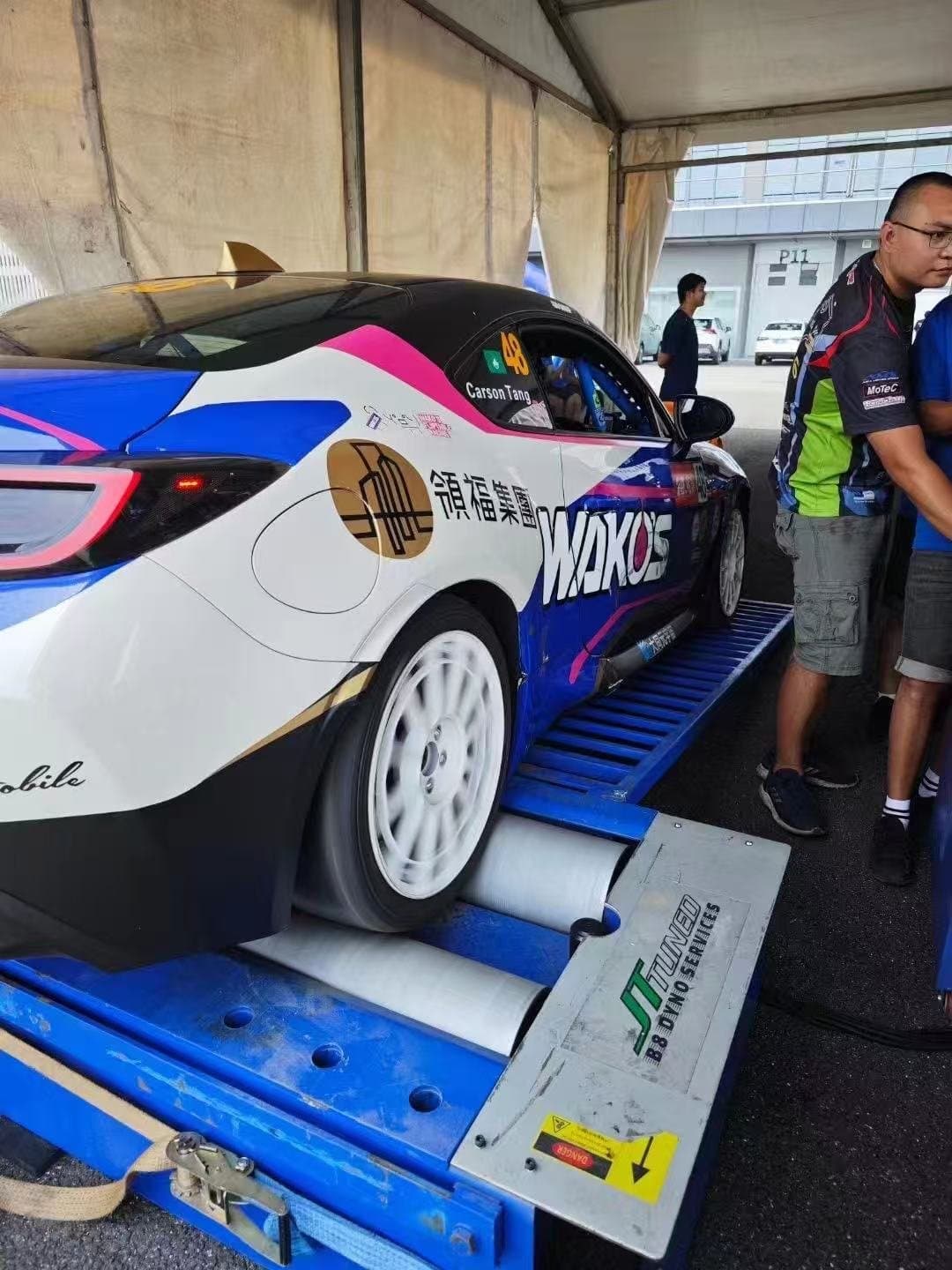

10 t Chassis Dynamometer
High-capacity 10 t chassis dynamometer for trucks and light commercial vehicles. Eddy-current control.
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTDCG-10VU is a high-capacity 10 t vehicle chassis dynamometer for professional automotive workshops, used-car evaluation centres and performance tuning facilities. Eddy-current control technology delivers safe, precise data acquisition with power absorption above 250 kW and max brake torque 2500 N·m. The 320 × 1000 mm rollers and integrated flywheel inertia simulation reproduce real-road conditions, with an air-lift mechanism for quick vehicle on/off.
Full datasheet
- RollerSize
- Ø 320 × 1000 mm
- LoadCapacity
- 10,000 kg
- MaxBrakeTorque
- 2500 N·m
- PowerAbsorption
- > 250 kW
- LiftingMechanism
- Air lift
- ControlTechnology
- Electric eddy current
- InertiaSimulation
- Equipped with flywheel
- RollerCenterDistance
- 600 mm
ECTDCG-10VU · Features
- High-capacity 10 t platform for trucks and light commercial vehicles
- Power absorption > 250 kW, max brake torque 2500 N·m
- Eddy-current control with flywheel inertia simulation
- Air-lift mechanism for fast vehicle on/off
- Suited to dynamics, emissions, drivetrain and ECU-calibration testing
