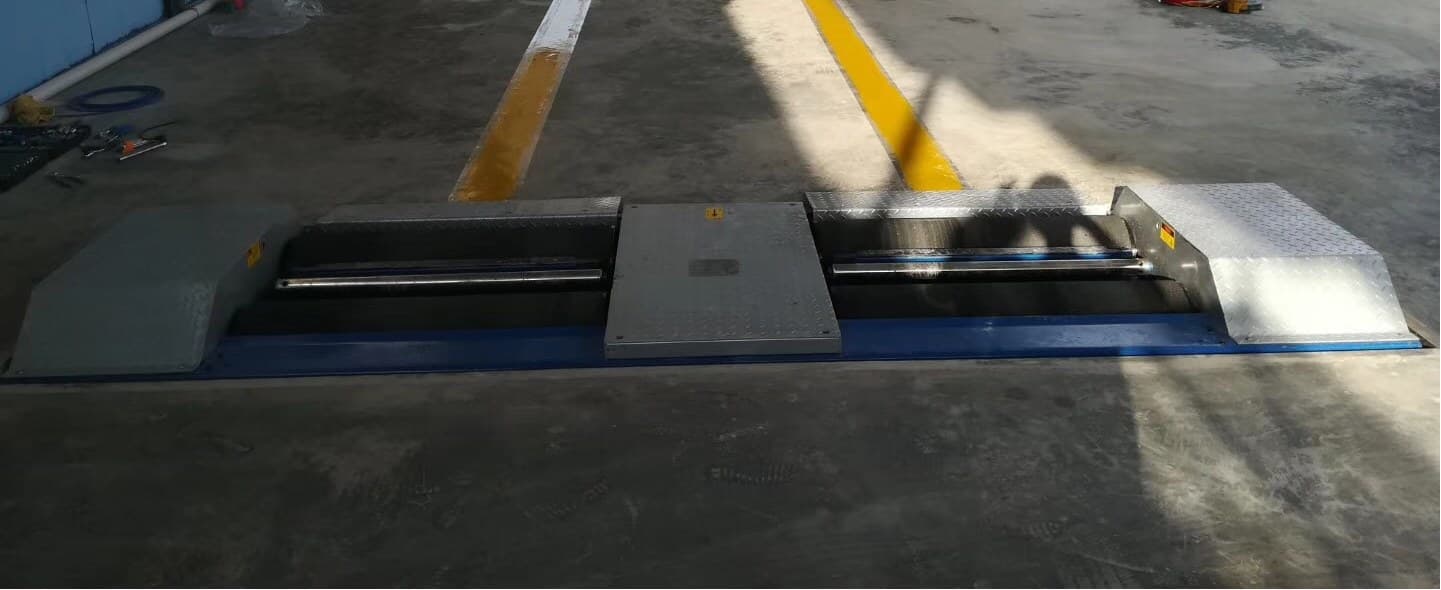

10 t Roller Brake Tester
Heavy-duty brake testing for trucks, buses and commercial vehicles up to 10 t axle load.
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTFZ-10AVU is a 10 t heavy-duty roller brake tester for commercial vehicle inspection centres, truck workshops and fleet facilities. The 245 × 1000 mm sanding rollers and 2 × 11 kW drive deliver brake-force measurements to 30 kN per wheel, with adhesion above 0.85 in dry and wet conditions and measurement error below 1.5 %. Configured to support CVRT and DVSA commercial testing workflows.
Full datasheet
- AxleLoad
- 10,000 kg
- MotorPower
- 2 × 11 kW
- PowerSupply
- AC 380 V 50/60 Hz
- RollerDiameter
- Ø 245 × 1000 mm
- BrakeForceRange
- 2 × (0–30 kN)
- RollerLongevity
- > 200,000 cycles
- MeasurementError
- < 1.5 % (national standard < 3 %)
- AdhesionCoefficient
- > 0.85 (dry & wet)
ECTFZ-10AVU · Features
- Heavy-duty 10 t capacity for trucks, buses and commercial vehicles
- Axle-by-axle brake-force measurement up to 30 kN per wheel
- Sanding rollers with > 0.85 adhesion in dry and wet conditions
- Automatic-stop safety device
- Configured for CVRT and DVSA commercial-testing workflows
- Integrates with full multi-function test lines
