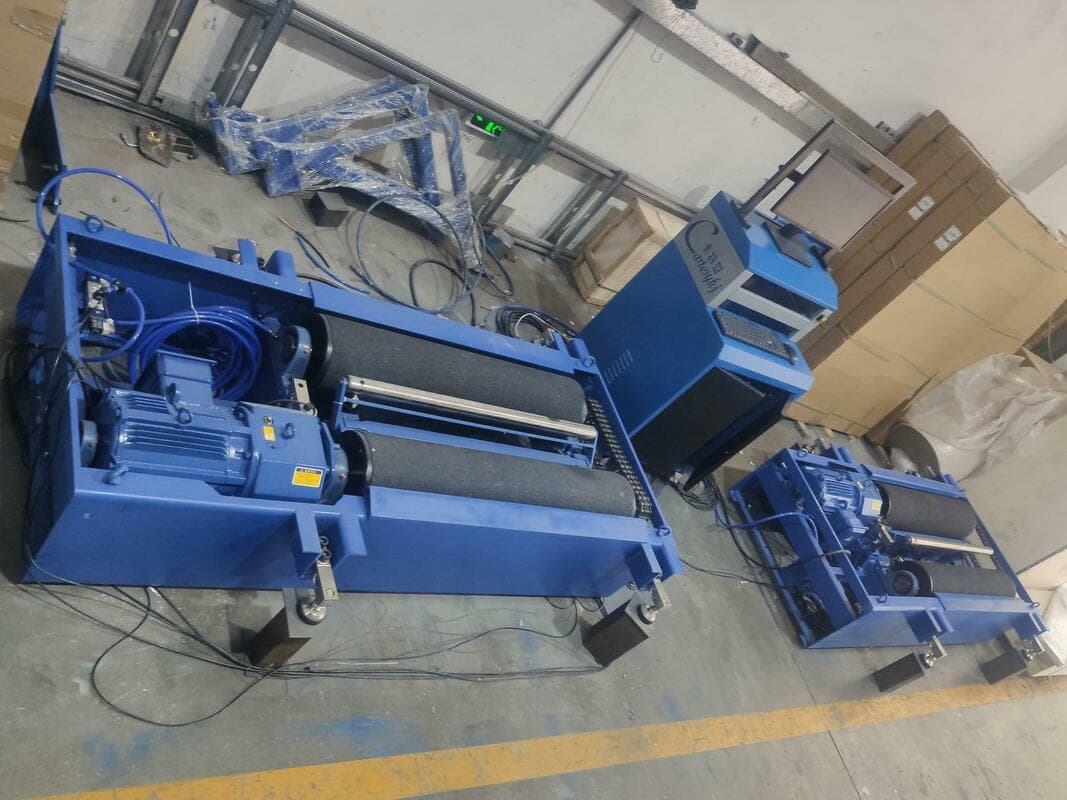

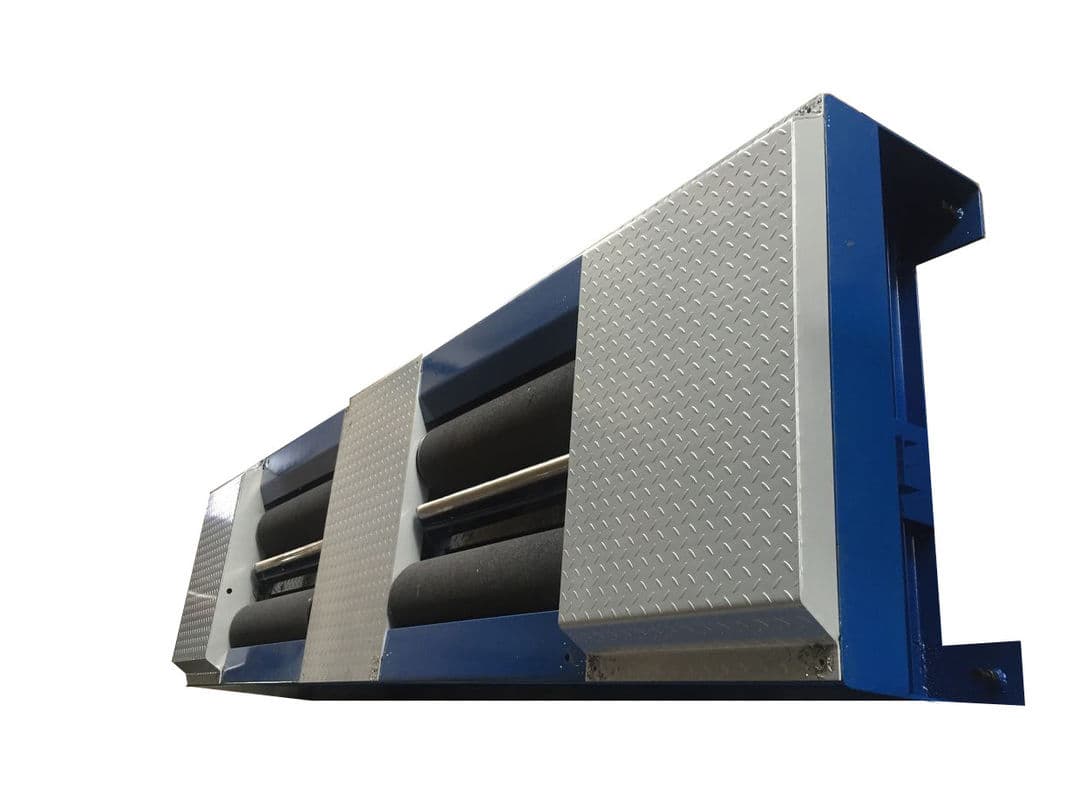

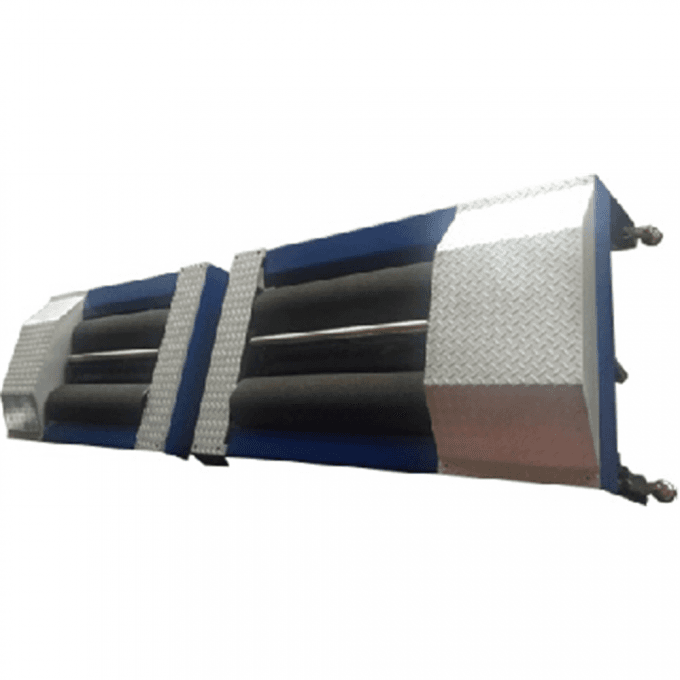

10 t Brake Tester with Integrated Axle Load
Combined brake-force and wheel-load testing in a single 10 t platform — no separate axle scale required.
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTFZ-10CVU measures the braking force of each axle (left and right wheels) and the wheel load of the inspected vehicle in a single drive-through station, eliminating the need for a separate axle-load tester. Detection runs at 2.5 km/h, with brake-force measurement up to 30 kN per wheel and a 245 × 1000 mm sanding-roller pair driven by 2 × 11 kW motors. The integrated axle-load function feeds wheel weight directly into the brake-efficiency calculation, simplifying reporting for commercial testing centres.
Full datasheet
- AxleLoad
- 10,000 kg
- MotorPower
- 2 × 11 kW
- PowerSupply
- AC 380 V 50 Hz
- DetectionSpeed
- 2.5 km/h
- RollerDiameter
- Ø 245 × 1000 mm
- BrakeForceRange
- 2 × (0–30 kN)
- IntegratedAxleLoad
- Yes — wheel load feeds brake-efficiency calc
ECTFZ-10CVU · Features
- Brake-force and wheel-load measurement in a single station
- 10 t axle-load capacity — sized for commercial vehicles
- Detection speed 2.5 km/h with auto-stop on slip
- Welded main body, no ground bolts required
- High-friction sanding rollers, > 200,000-cycle service life
- European-manufactured reducer; ISO 9001 / CE certified
