Joint Play Detector (10 / 13 t)Hydraulic joint play detector with wireless remote control
Hydraulic multi-directional play detector with switchable 10 / 13 t axle-load capacity and wireless remote.
- Max axle load13t
- Cycle force20kN
- Plate range±50mm
- Plate speed60–80mm/s
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.

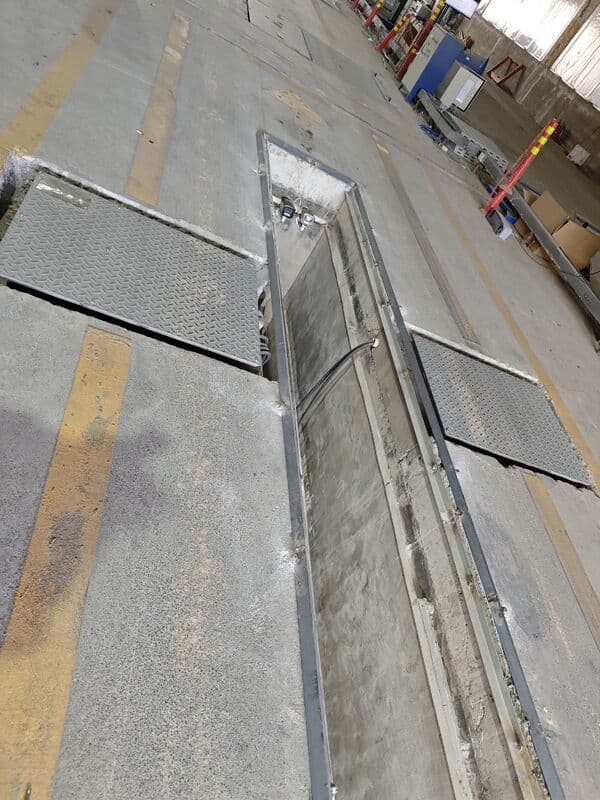

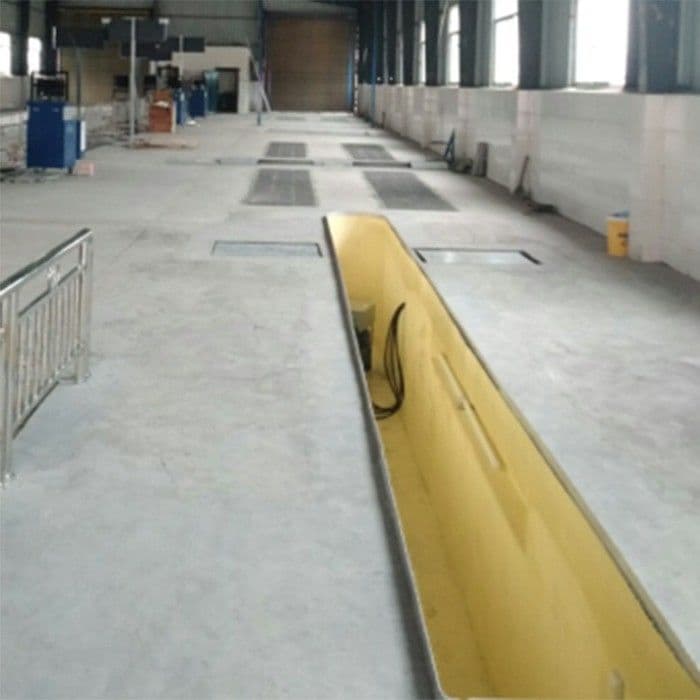

Warranty & support →The ECTJX-13U joint play detector inspects clearances in vehicle suspension and steering-system components. Vehicle wheels are placed on test plates that move longitudinally and laterally under remote control, allowing the operator to assess play in tie rods, ball joints, steering arms, wheel bearings and similar parts. Hydraulic actuation, an extra-heavy-duty structure and wireless remote control deliver fast, repeatable inspections suitable for CVRT and commercial testing centres. The unit supports a switchable 10 / 13 t axle-load capacity from the same hardware.
Full datasheet
- Detection
- Hydraulic movement detection
- Operation
- Wireless remote control
- Directions
- Multi-directional testing
- MotorPower
- 3 kW
- MaxAxleLoad
- 10,000 / 13,000 kg
- PowerSupply
- AC 380 V
- Sensitivity
- High sensitivity inspection
- PlateDimensions
- 1000 × 750 mm
- PlateMovingForce
- 20 kN max
- PlateMovingScope
- ±50 mm
- PlateMovingSpeed
- 60–80 mm/s
ECTJX-13U · Features
- Hydraulic-pressure-driven multi-directional plate movement
- High-sensitivity inspection of tie rods, ball joints, steering arms and bearings
- Extra-heavy-duty structure, robust and low noise
- Wireless remote control with torch included

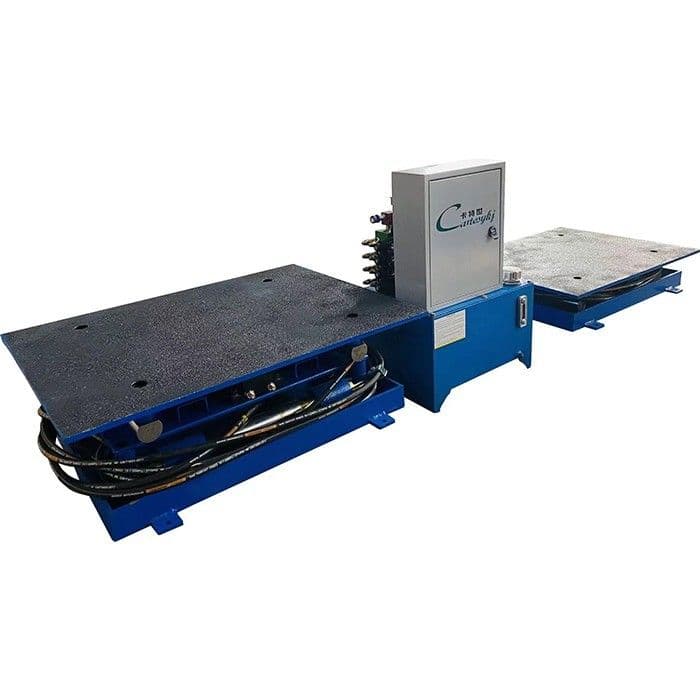

- Two moving plates with hydraulic and electric control systems
- Switchable 10 / 13 t axle-load capacity
- Suitable for CVRT and commercial testing workflows
