4 t Chassis Dynamometer
Medium-duty chassis dynamometer for passenger cars, SUVs and light commercial vehicles. Eddy-current control with WiFi interface.
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.

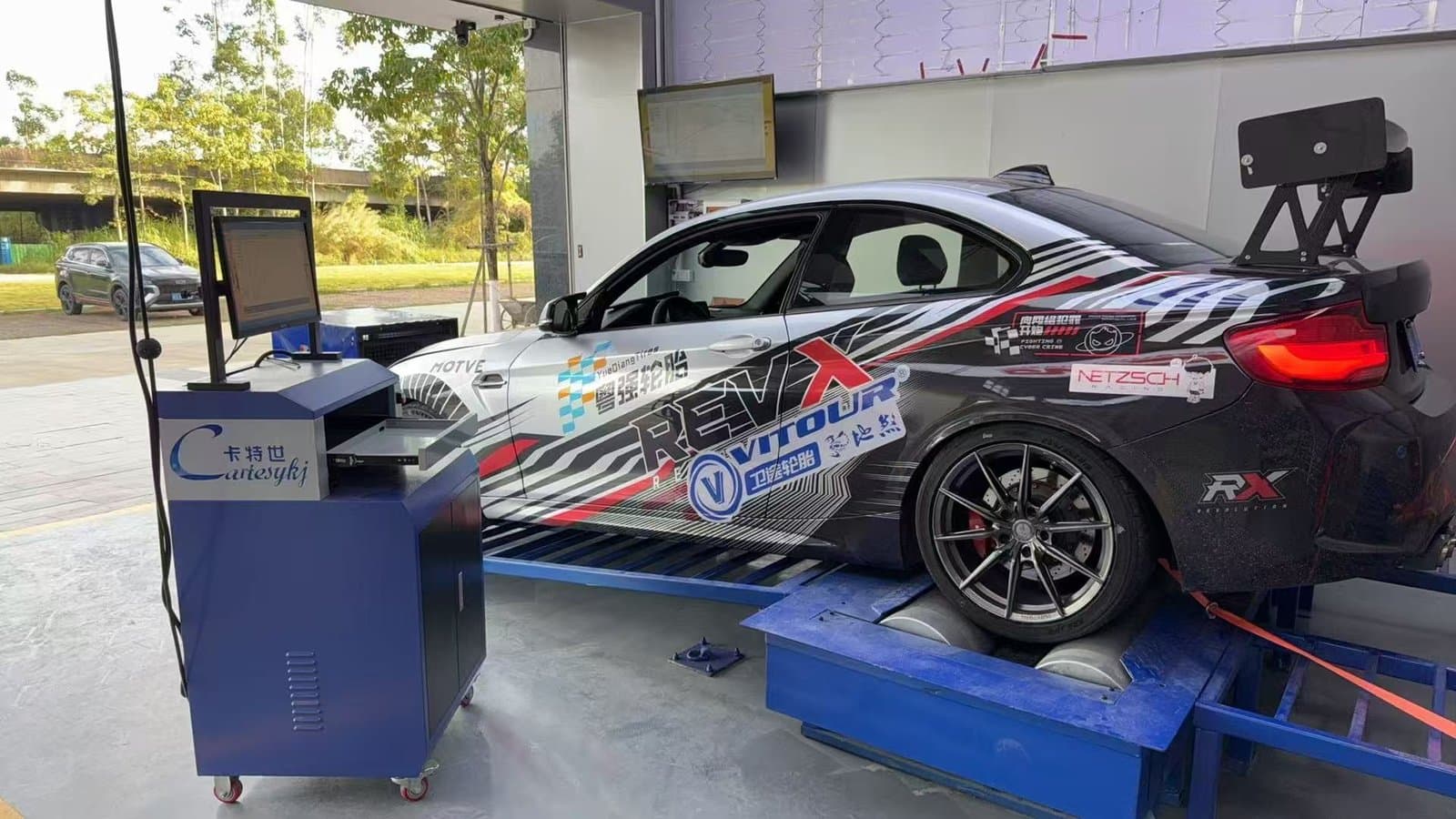

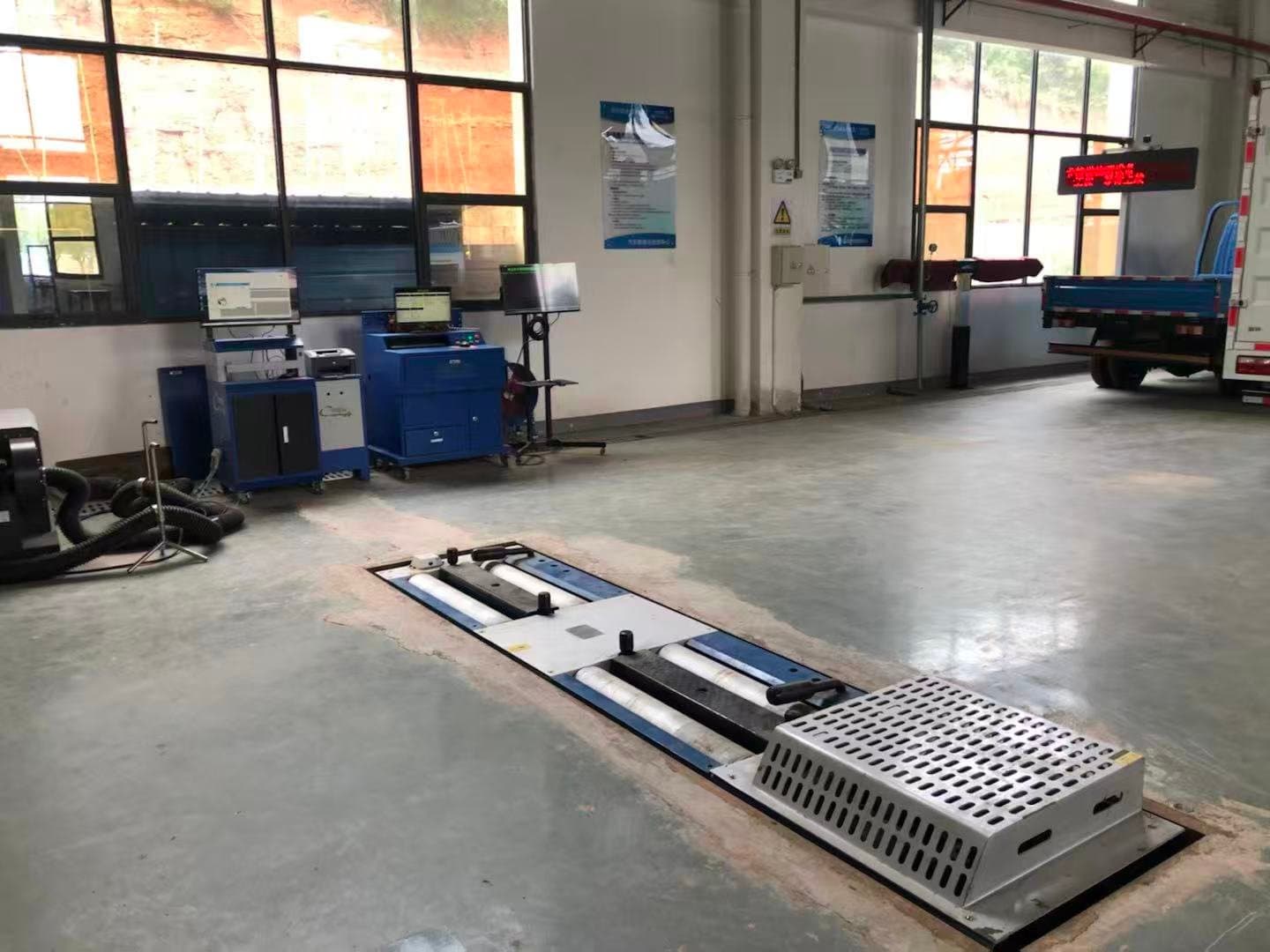

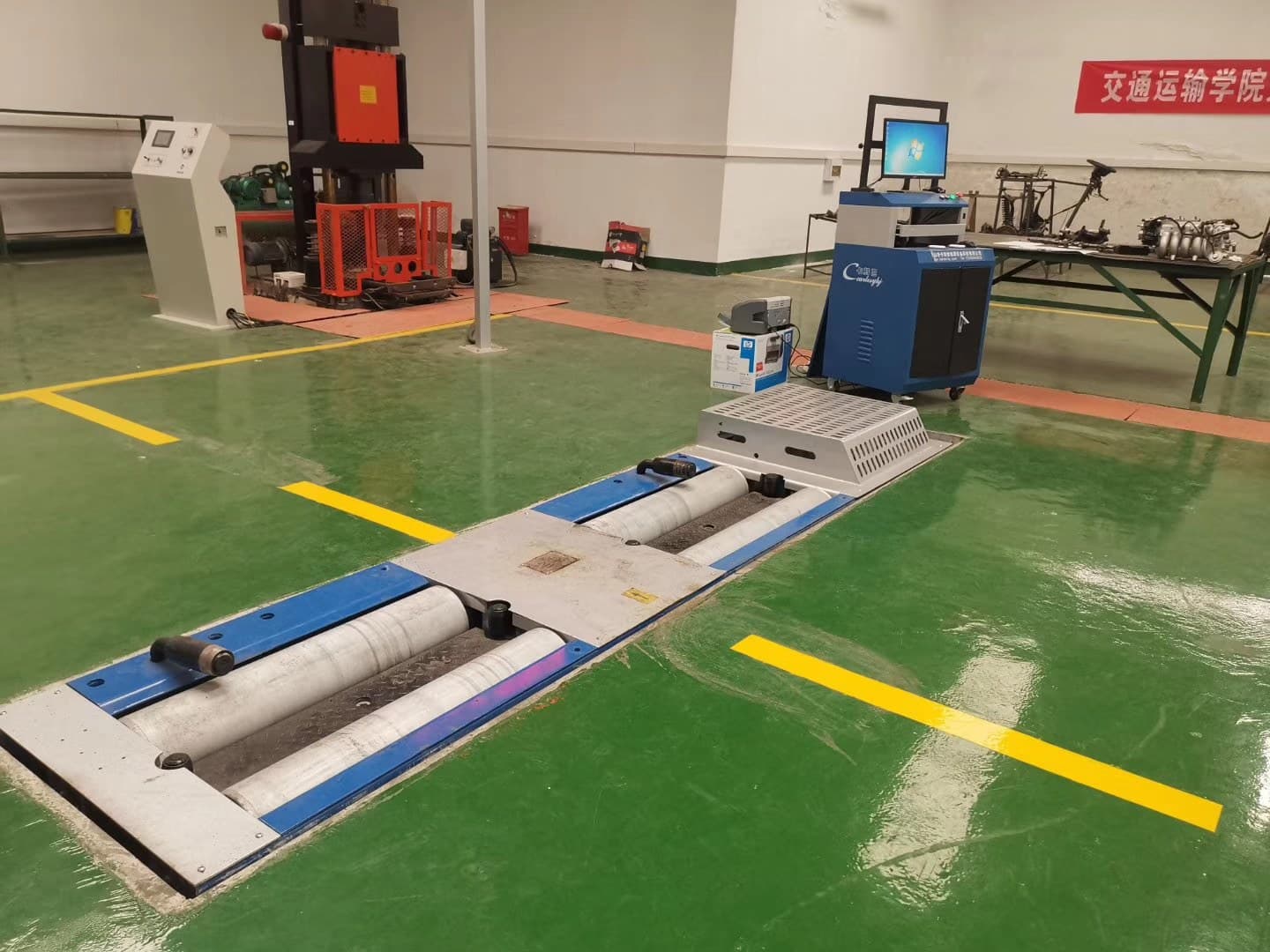

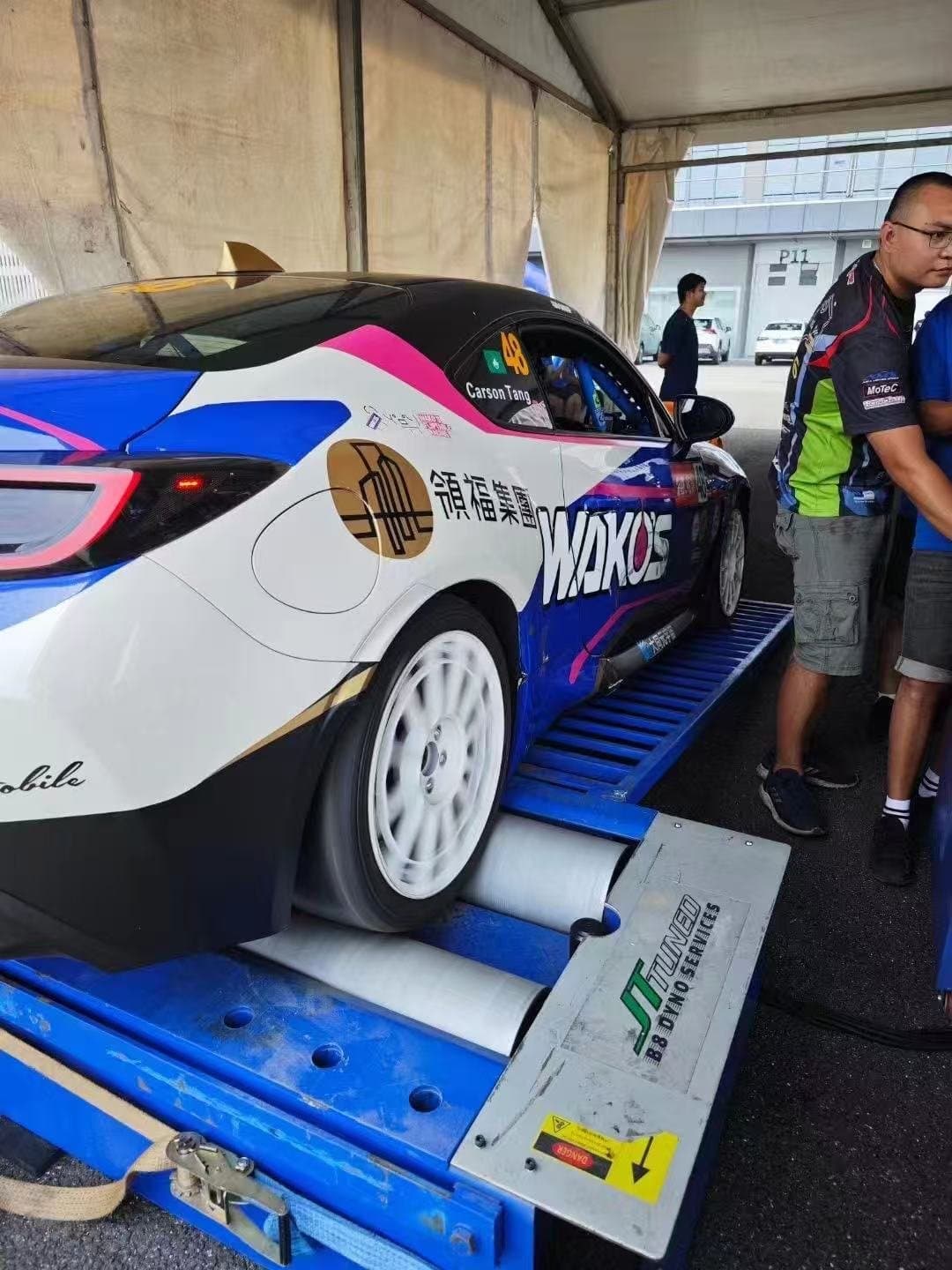

Warranty & support →The ECTDCG-3DVU is a 4 t vehicle chassis dynamometer engineered for automotive workshops, used-car evaluation centres and performance tuning facilities. Eddy-current control technology delivers safe, precise data acquisition for dynamic property testing, emissions and fuel-economy analysis, drivetrain evaluation and ECU calibration. The 216 × 1000 mm rollers and integrated flywheel inertia simulation reproduce real-road conditions, with an air-lift mechanism for quick vehicle on/off.
Full datasheet
- RollerSize
- Ø 216 × 1000 mm
- LoadCapacity
- 4000 kg
- WifiInterface
- Yes
- MaxBrakeTorque
- 1600 N·m
- PowerAbsorption
- > 160 kW
- LiftingMechanism
- Air lift
- ControlTechnology
- Electric eddy current
- InertiaSimulation
- Equipped with flywheel
- RollerCenterDistance
- 480 mm
ECTDCG-3DVU · Features
- Eddy-current control with WiFi interface
- Power absorption > 160 kW, max brake torque 1600 N·m
- Flywheel-based inertia simulation reproduces real-road conditions
- Air-lift mechanism for fast vehicle on/off
- Suited to dynamics, emissions, drivetrain and ECU-calibration testing
- Designed for passenger cars, SUVs and light commercial vehicles
