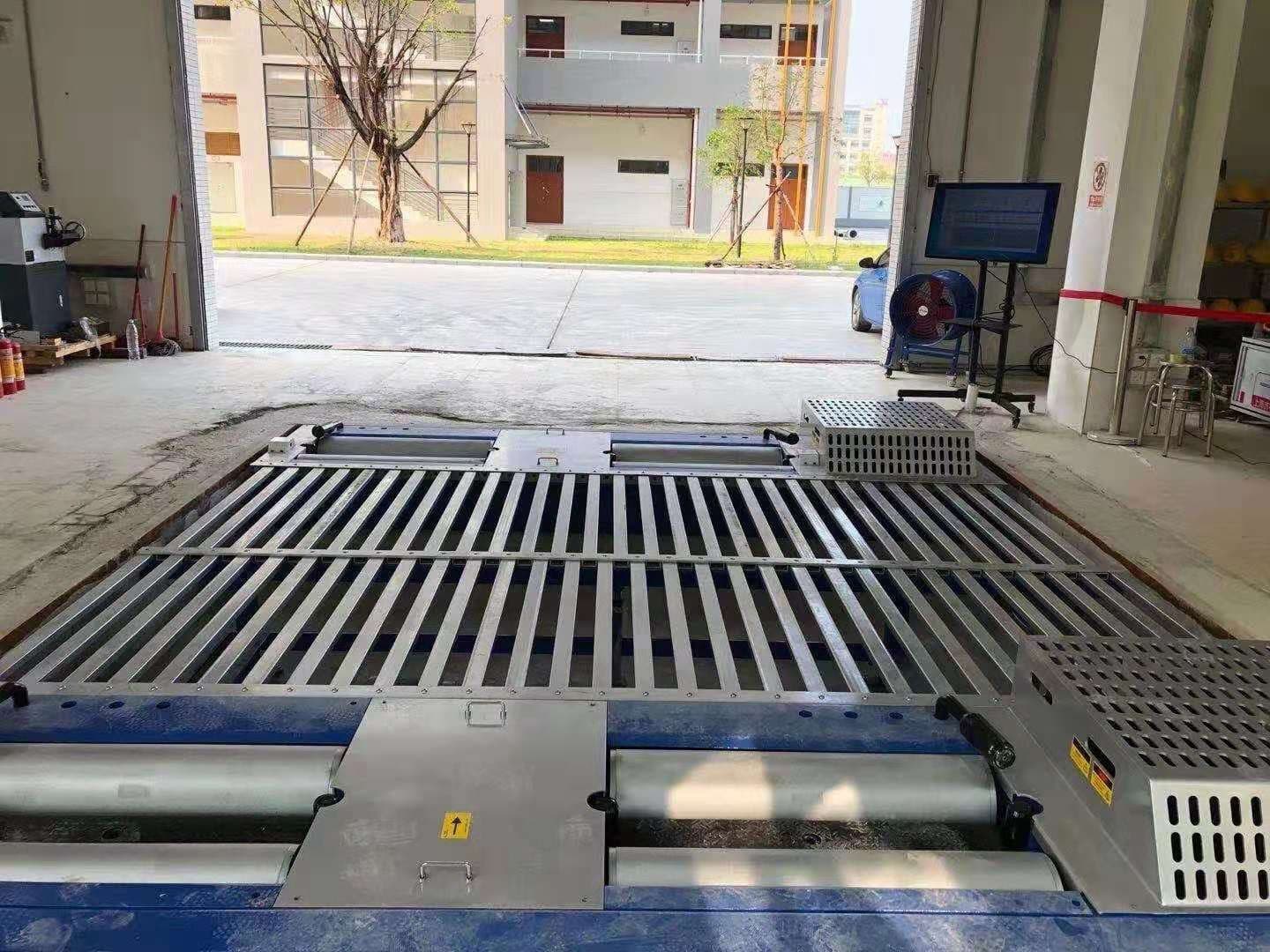

4 t 4WD Chassis Dynamometer
All-wheel-drive chassis dynamometer for 2WD and 4WD vehicles. Air-cooled eddy-current absorber.
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTDCG-3-4WDVU is a 4 t all-wheel-drive chassis dynamometer engineered for tuning shops, vehicle modification centres and ECU calibration facilities working with modern 4WD systems. Specialised air-cooled eddy-current technology delivers safe, precise dynamic testing of both 2WD and 4WD vehicles. The platform supports vehicles to 260 km/h test speed and wheelbases from 2100 to 3200 mm, with reference inertia 908 kg ± 18 kg.
Full datasheet
- Absorber
- Air-cooled eddy current
- AirSource
- ≥ 0.8 MPa
- RollerSize
- ≥ Ø 216 × 700 mm
- MaxTraction
- ≥ 25 kN
- PowerSupply
- AC 380 V
- MaxTestSpeed
- ≥ 260 km/h
- RatedAxleLoad
- 4000 kg
- WheelbaseRange
- 2100–3200 mm
- ReferenceInertia
- 908 kg ± 18 kg
- InnerOuterDistance
- 700 × 2400 mm
- WheelbaseAdjustment
- 0–1100 mm
- RollerCenterDistance
- ≥ 437 mm
ECTDCG-3-4WDVU · Features
- Tests both 2WD and 4WD vehicles
- Air-cooled eddy-current power absorber
- Max test speed ≥ 260 km/h
- Adjustable wheelbase 2100–3200 mm
- Reference inertia 908 kg ± 18 kg for accurate power output
- Designed for tuning shops and ECU calibration centres
