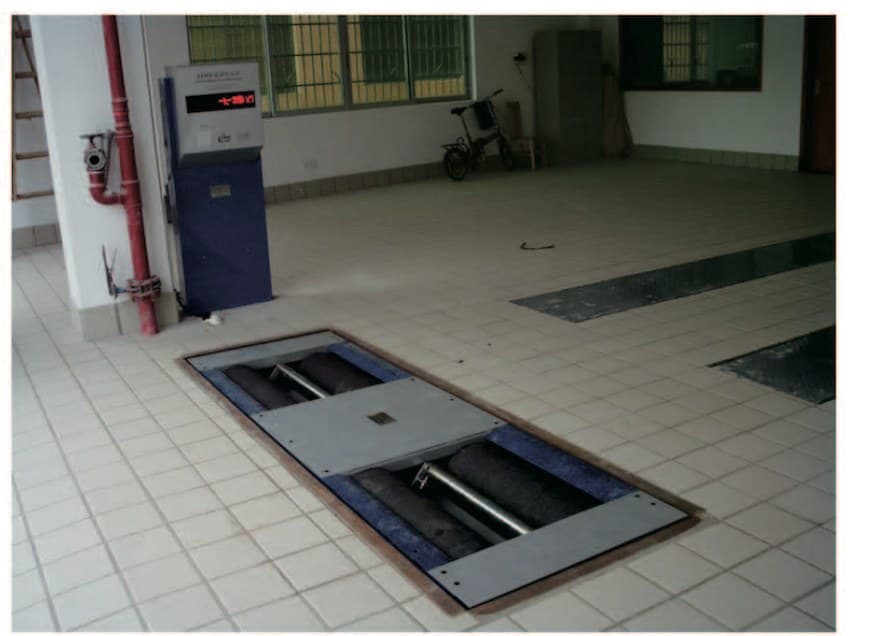

4 t Roller Brake Tester
Precision brake safety testing for passenger cars, SUVs and light commercial vehicles. Optional ABS/4WD upgrade.
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTFZ-3AVU is a professional-grade 4 t roller brake tester engineered for vehicle safety inspection centres, car workshops and fleet maintenance facilities. High-adhesion sanding rollers and an automatic-stop safety system deliver repeatable per-axle brake-force measurement with deviation analysis below the national-standard tolerance. The tester ships ready for integration with full multi-function test lines and supports optional ABS and 4WD test upgrades.
Full datasheet
- AxleLoad
- 4000 kg
- MotorPower
- 2 × 3 kW
- PowerSupply
- AC 380 V 50/60 Hz
- RollerDiameter
- Ø 245 × 750 mm
- BrakeForceRange
- 2 × (0–15 kN)
- RollerLongevity
- > 200,000 cycles
- MeasurementError
- < 1.5 % (national standard < 3 %)
- AdhesionCoefficient
- > 0.85 (dry & wet)
ECTFZ-3AVU · Features
- Axle-by-axle brake force measurement, left and right wheels separately
- High-adhesion sanding rollers, > 200,000-cycle service life
- Measurement error < 1.5 % — well inside national-standard tolerance
- Automatic-stop safety prevents tyre abrasion
- Optional ABS and 4WD test upgrades
- Integrates with full multi-function test lines
