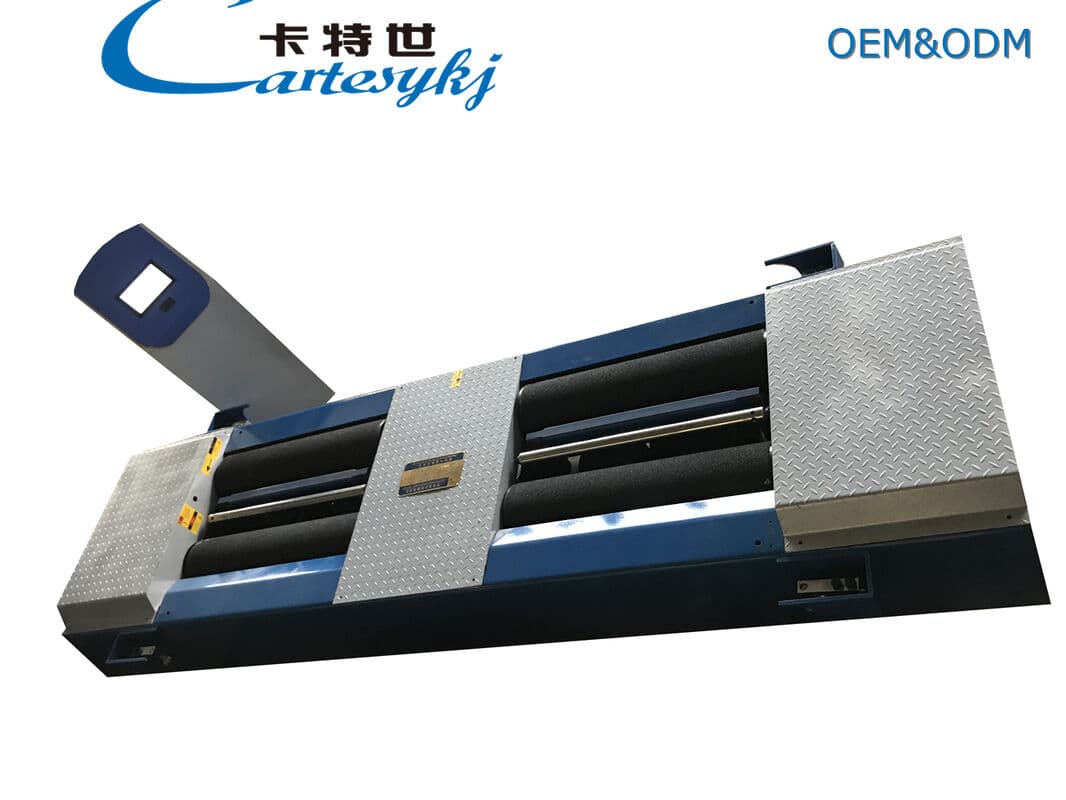

15 t Brake Tester with Integrated Axle LoadHeavy-duty roller brake tester for commercial vehicles
Heavy-duty 15 t brake tester with integrated wheel-load measurement — designed for commercial CVRT workflows.
- Max axle load15t
- Brake force40kN
- Roller dia.245mm
- Motor11kW × 2
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTFZ-13BVU is a heavy-duty roller brake tester with integrated axle load, sized for commercial vehicles up to 15 t. It measures braking force per axle (left and right wheels) and the wheel load of the inspected vehicle in a single station, supporting CVRT and DVSA-compatible commercial testing workflows. A welded main body, European-manufactured reducer, and high-friction sanding rollers deliver brake-force accuracy below national-standard tolerance.
Full datasheet
- Motor
- up to 11 kW × 2
- AxleLoad
- 15,000 kg
- WheelBase
- 700 / 2900 mm
- BrakeForce
- up to 4000 daN
- PowerSupply
- AC 380 V 50 Hz
- DetectionSpeed
- 2.5 km/h
- RollerDiameter
- 245 mm
- IntegratedAxleLoad
- Yes — wheel load feeds brake-efficiency calc
- InstallationDimensions
- 4100 × 1115 × 480 mm
ECTFZ-13BVU · Features
- Heavy-duty 15 t axle load — selected to align with CVRT lane requirements
- Brake-force and wheel-load measurement in a single station
- High-friction sanding rollers, adhesion > 0.85, > 200,000-cycle service life
- Welded main body — no ground bolts required
- European-manufactured reducer; ISO 9001 and CE certification
- Automatic stop device prevents tyre abrasion
- Optional airbag lifting device
