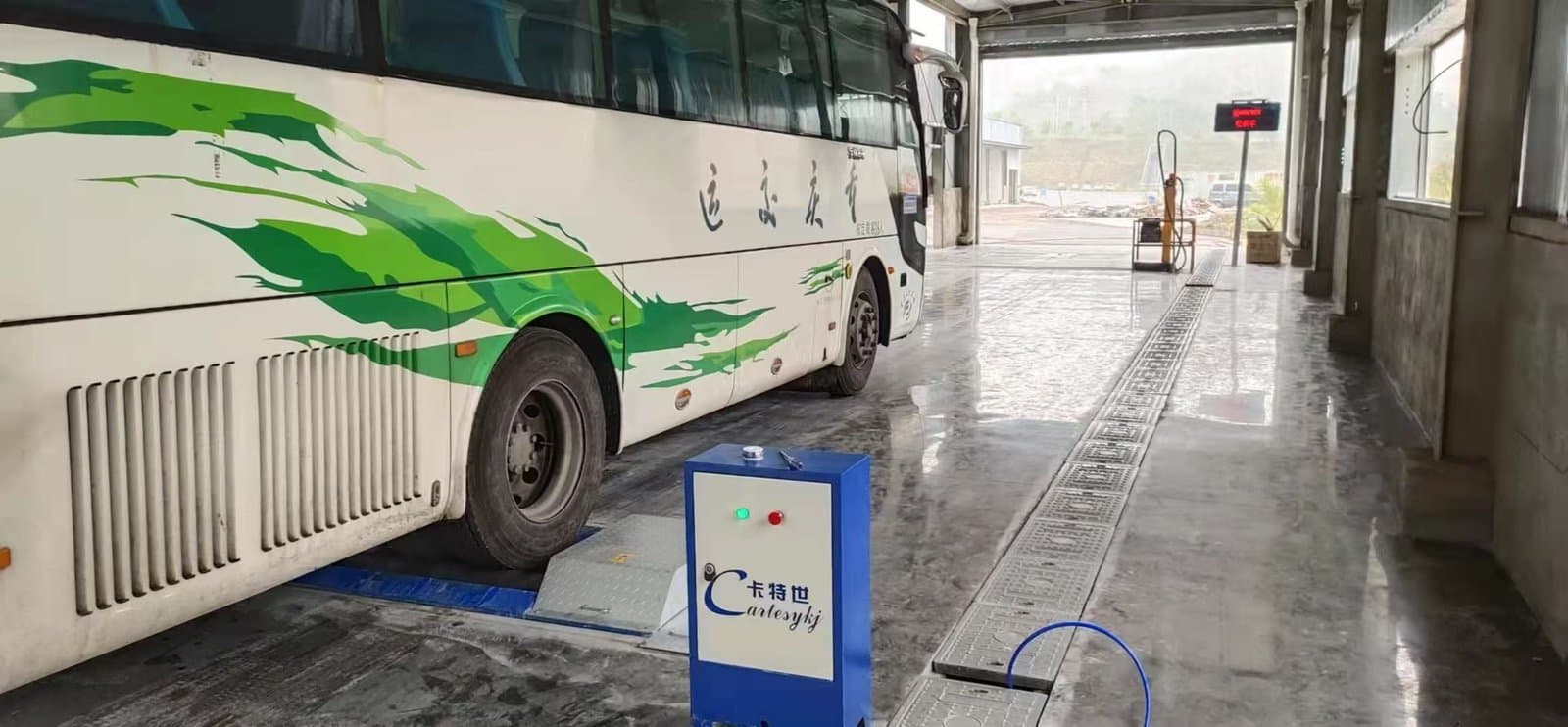

15 t Roller Brake Tester
Heavy-duty 15 t roller brake tester for trucks, buses and high-load commercial vehicles.
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTFZ-13AVU is a 15 t heavy-duty roller brake tester for commercial inspection centres handling trucks, buses and high-load vehicles. The 245 × 1100 mm sanding-roller pair and 2 × 15 kW drive deliver brake-force measurements to 45 kN per wheel with adhesion above 0.85 in dry and wet conditions and measurement error below 1.5 %. Configured for CVRT and DVSA workflows and designed for integration with full multi-function test lines.
Full datasheet
- AxleLoad
- 15,000 kg
- MotorPower
- 2 × 15 kW
- PowerSupply
- AC 380 V 50/60 Hz
- RollerDiameter
- Ø 245 × 1100 mm
- BrakeForceRange
- 2 × (0–45 kN)
- RollerLongevity
- > 200,000 cycles
- MeasurementError
- < 1.5 % (national standard < 3 %)
- AdhesionCoefficient
- > 0.85 (dry & wet)
ECTFZ-13AVU · Features
- 15 t capacity — sized for high-load commercial inspection
- Brake force to 45 kN per wheel, measurement error < 1.5 %
- Sanding rollers > 0.85 adhesion, > 200,000-cycle service life
- Automatic-stop safety prevents tyre abrasion
- Configured for CVRT and DVSA commercial-testing workflows
- Integrates with full multi-function test lines
