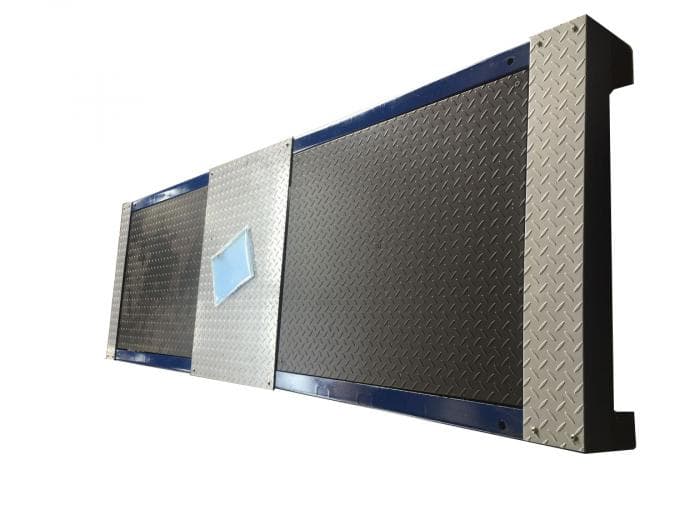

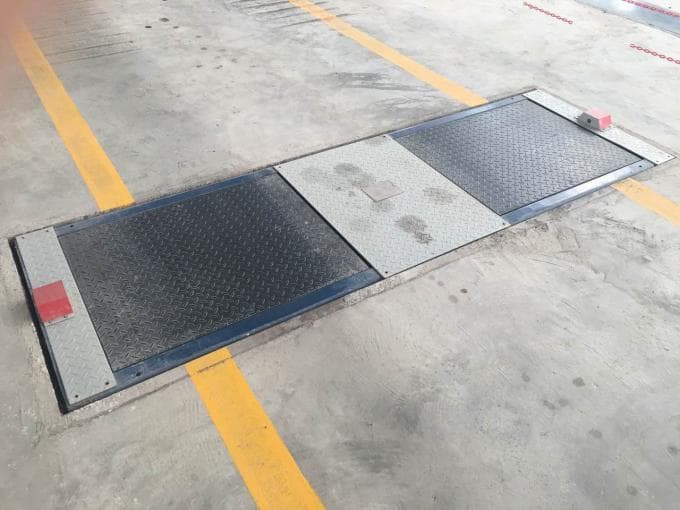

Axle Wheel Load Tester (10 t)Precision axle and wheel load weighing system
Precision strain-gauge load cells for stable, repeatable wheel and axle weight measurement up to 10 t.
- Max passing axle10t
- Wheel range0–5t
- Plate1000 × 800mm
- Tread700–2700mm
Dealer pricing available on request. Final price depends on configuration, delivery location, installation scope and the approval documentation required.
Extended Cartesy Europe 36 support programme available subject to registration, installation and annual service conditions.
Warranty & support →The ECTZZ-10U axle (wheel) load system measures the wheel load of a vehicle — a key input for brake-efficiency calculation and inspection-authority reporting. Brand-name strain-type load cells deliver accurate, stable measurement; an extra-strong welded body and anti-slanting weighing design ensure repeatability over years of daily use. The system integrates seamlessly with brake testers and full multi-function test lanes for unified inspection workflows.
Full datasheet
- Integration
- Compatible with brake testers and integrated test lanes
- Measurement
- Real-time wheel and axle weight
- WheelLoadRange
- 0–5000 kg
- SensorTechnology
- Precision strain-type load cells
- MaxPassingAxleLoad
- 10,000 kg
- TreadInsideOutside
- 700 / 2700 mm
- InstallationDimensions
- 3000 × 960 × 220 mm
- WeighingPlateDimensions
- 1000 × 800 mm
ECTZZ-10U · Features
- Precision load-cell technology for stable, repeatable measurement
- Real-time weight measurement — wheel, axle and total vehicle mass
- Integrates with brake testers and full test lanes
- Extra-strong welded body — no anchor bolts required
- Anti-slanting weighing design for accuracy under uneven loading
- Quick drive-through testing mode
